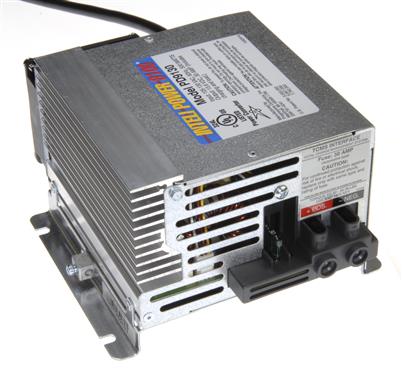

30 amp RV Electronic Power Converter By Progressive Dynamics, Progressive Dynamics PD9130V

Description

The PD9130, 30 amp power converter is designedto provide reliable filtered DC power to all recreational vehicle 12-voltlighting and appliance circuits. The PD9130 converter also provides safe andrapid recharging of RV batteries. Built-in features such as electronic currentlimiting, reverse battery protection, high voltage protection, low voltageoperation, and over temperature shut down ensure long term reliability.

The built-in TCMS (Total Charge Management System) connector allows the RVmanufacturer, dealer, or owner to easily add the Charge Wizard. The ChargeWizard is a microprocessor-controlled system that constantly monitors thebattery voltage and use to ensure a rapid; yet, safe, recharge. The ChargeWizard can select one of three charging voltages and one of four operating modesdepending on the condition and use of the battery.

Specifications

Output:	13.6 VDC, 30 AMPS
Input:	105-130 VAC, 500 WATTS
Size:	4.5′ X 7′ X 7.2′
Weight:	4 Lbs.

Features

Electronic Current Limiting

High Voltage Protection

Reverse Battery Protection

Light Weight

Quiet Sensor Cooling Fan

Low Voltage Protection
