Dometic RV Refrigerator Replacement Circuit Board, Dinosaur MICRO P-711

Description

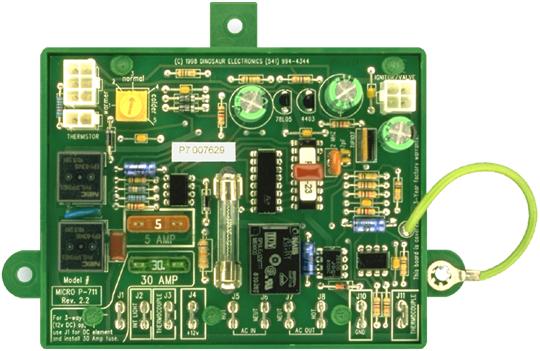

Dometic RV Refrigerator Replacement Circuit Board MICROP-711

Built in surge protection.

Protects from installation errors and the RV Power supply.

Fuse protected on the 120 VAC circuit, 12 VDC supply and the DC element.

Improved thermocouple circuit to eliminate recurring check light problem.

Food saver feature keeps the refrigerator operating if the eyebrow board or communication link fails.

Built in control allows temperature adjustment in the ‘Fixed’ temperature Americana and Freedom series refrigerators.

The temperature control also allows compensation for aging and production variations in those units that have the 1 2 3 4 5 temperature control on the operator panel.

Built in microcontoller for highly reliable operation Universal 2-way or 3-way (AC / DC / Gas) operation Install optional fuse (provided) for 3-way operation.
