Intellitec Battery Guard 1000 12V, 10‐01118‐000

Description

Intellitec 10 01118 000 Battery Guard 1000 12 Volt  (0153 01118 200)

The Battery Guard 1000 was designed to make installation simple. With its unique all in one design, Intellitec brought the electronics to the source, eliminating additional wiring and simplifying the
installation process. The Battery Guard 1000 has a mounting plate attached with two mounting holes located in the back and uses automotive standard connectors for peripheral connections.

Through its correct use you may:
1) Prevent unwanted discharging of batteries during extended periods of storage.
2) Safely disconnect 12 Volt electrical system when storing for extended periods.
3) Prevent overcharging of batteries if RV is plugged into shore power for extended periods.

These instructions contain all the information needed to help you install the Battery Disconnect. It is assumed the installer has basic skills in electrical wiring, mechanics, and carpentry. If you have any
doubts about these techniques or instructions consult with someone BEFORE you connect a wire or cut a hole.

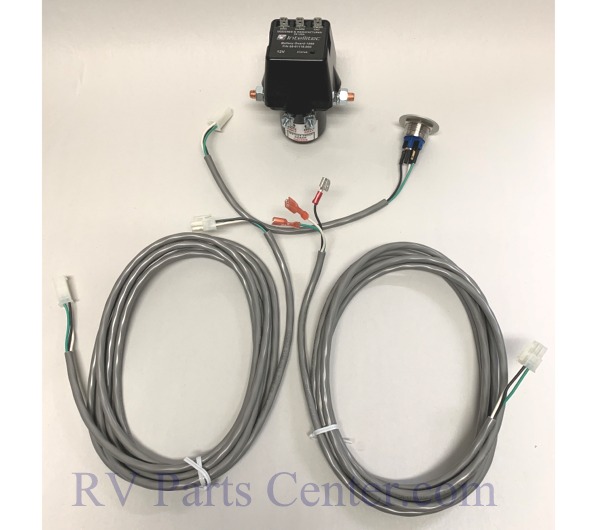

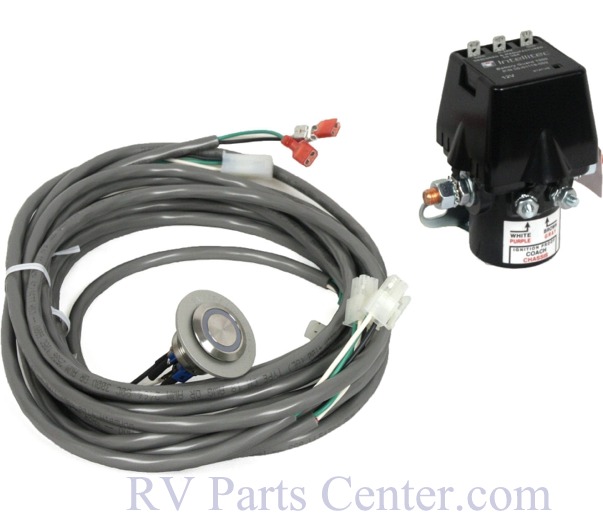

The Battery Guard 1000 Kit (10 01118 000) includes the following:

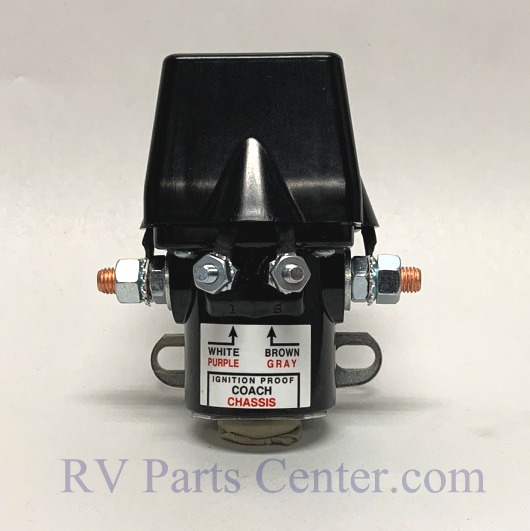

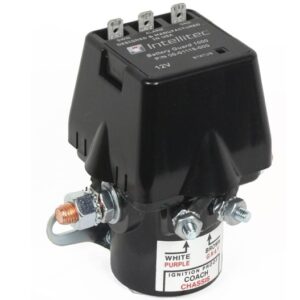

1 Battery Guard 1000 (00 01118 000)
1 10 ft Harness (11 01118 001)
1 10 ft Extension Harness (11 01118 000)

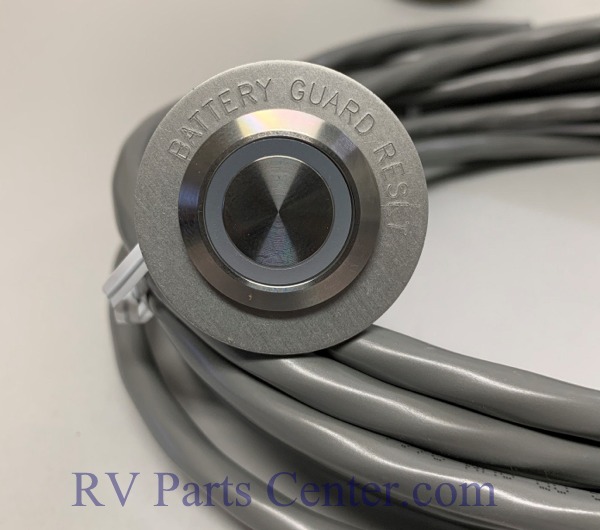

1 Battery Guard Switch with LED indicator (11 01085 000)

Note: Not included in the kit is the hardware for mounting the Battery Guard 1000, Ring Terminals for
attaching the battery and load cables.

Click Here for Product Specifications
