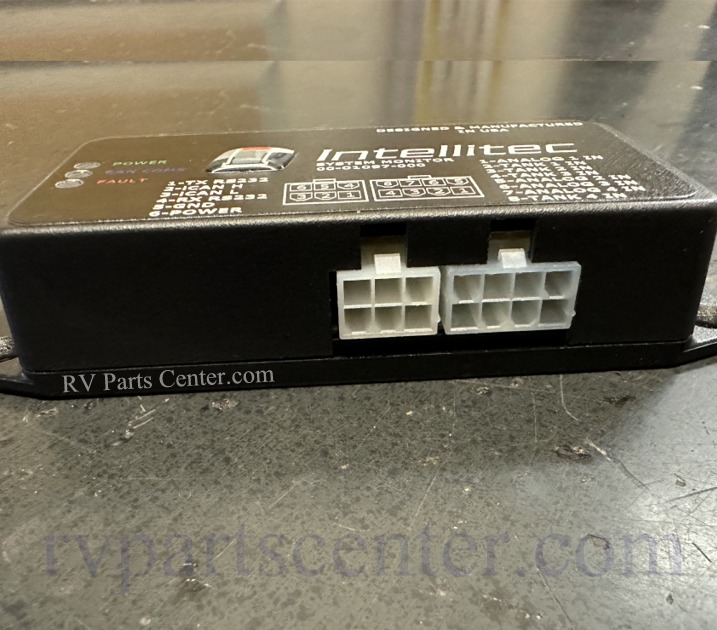

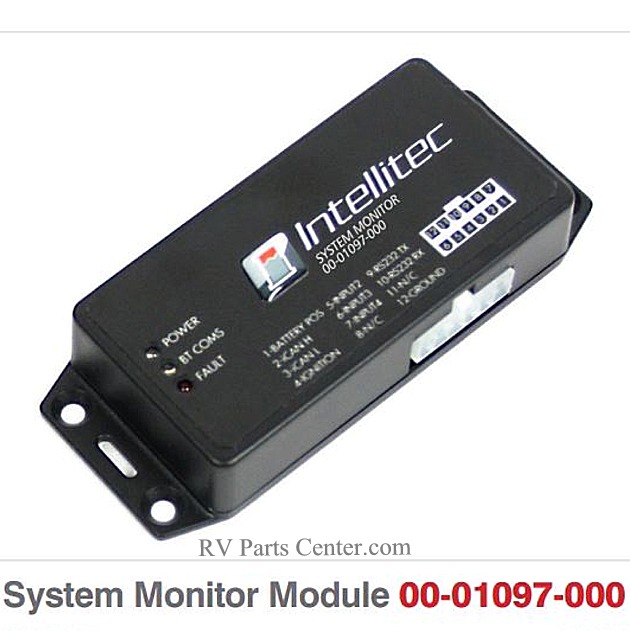

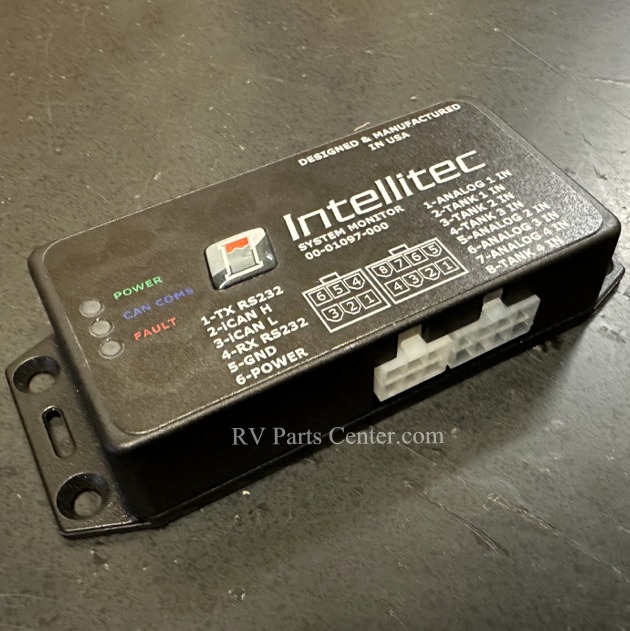

System Monitor Module, Intellitec 00-01097-000

Description

The Intellitec Products System Monitor Module, 00-01097-000
Overview:
The Intellitec Products System Monitor module, 00-01097-000, is intended to monitor the health and
status of your recreational vehicle and communicate this information to the BT-Module. The System Monitor interprets
the battery voltages, up to four banks, and reads the tank level status for up to four tanks.

The BT-Module then sends the updated information about the current battery voltage for up to four banks of battery while graphically depicting the health of the battery to your SMART device. Also, the Tank Level of four tanks, Fresh, Gray1, Gray2, and Black) are collected and transmitted to the BT-Module so the user can have up to the moment information on the critical levels within the recreational vehicle.
Application:
The System Monitor module provides an easy to use and understandable display of the health of your recreational
vehicle remotely through the use of your SMART device. The maximum output current draw is also protected from overcurrent situations. The load current for each output channel
is configurable through using the module configuration tool to provide the proper level of circuit protection.

The System Monitor module is used in conjunction with the BT-Module in order to communicate the information to your
SMART device. More specific application and installation information is available in the Service manual for this module.

Advantages:
Works in conjunction with conventional switch buttons.
Expandable and adaptable to previous model year coaches as well as new.
Simple to install.

Features:
Provides Diagnostic information in real time.
Sleep mode enabled.
Perfect for dry camp operation.
