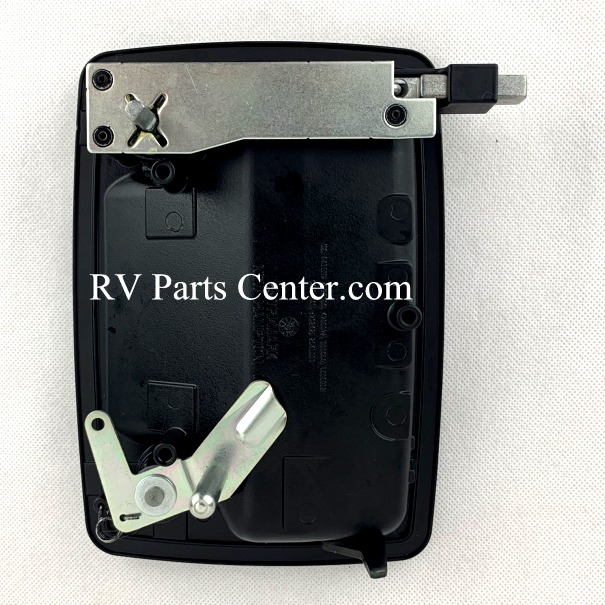

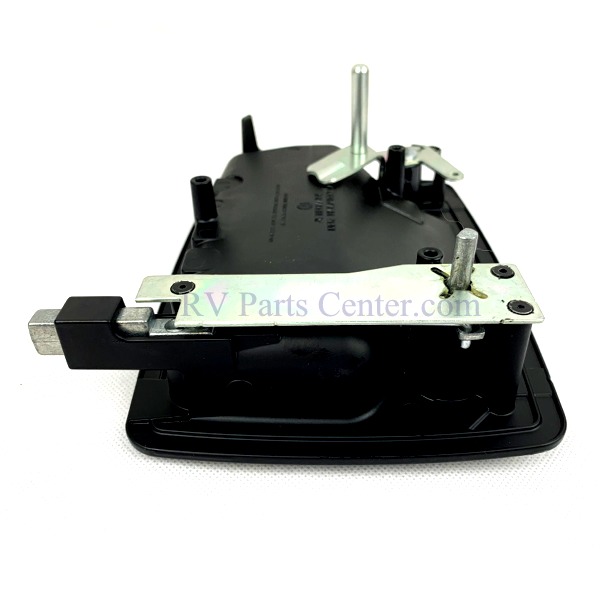

Tri-Mark Exterior Paddle Lock Only with 1 inch Deadbolt, 36283-07

Description

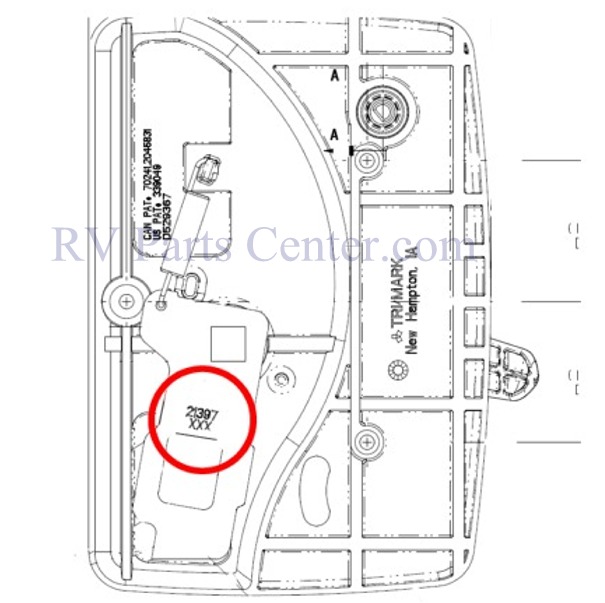

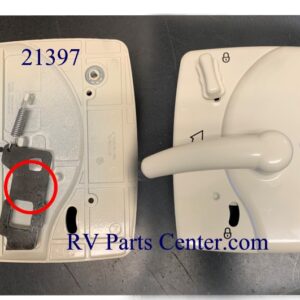

This exterior lock will only works if the 5 digit code that is stamped on the actuator on the inside of the interior handle is 11928 , 21397 or 13428

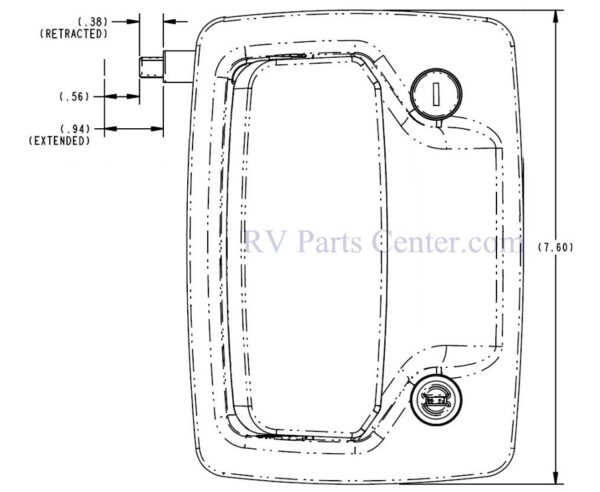

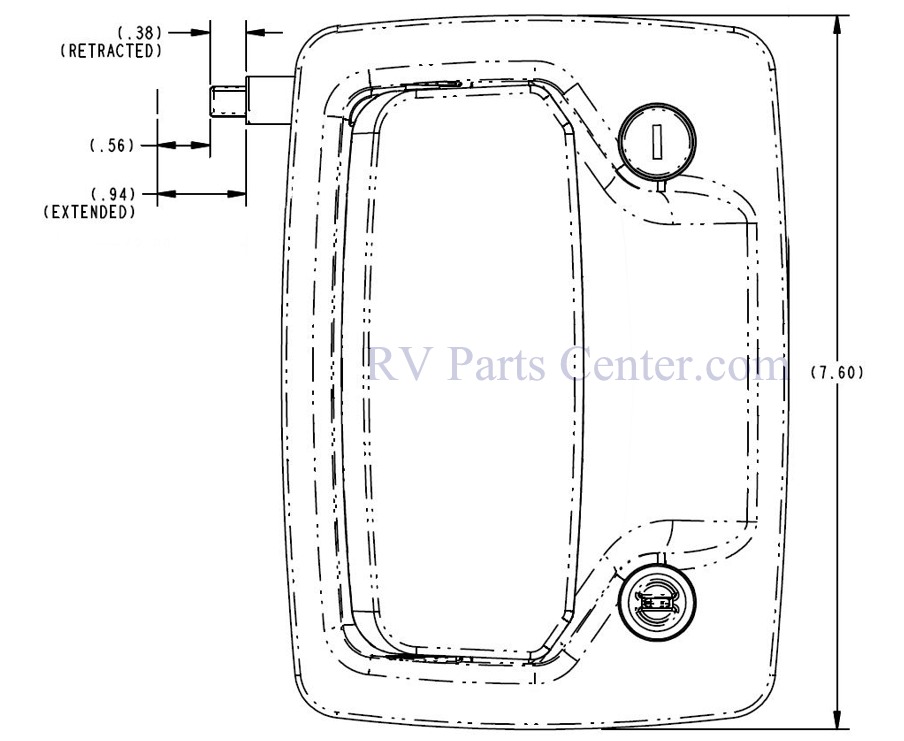

Exterior door handle measures 7.6′ Tall by 5.4′ Wide

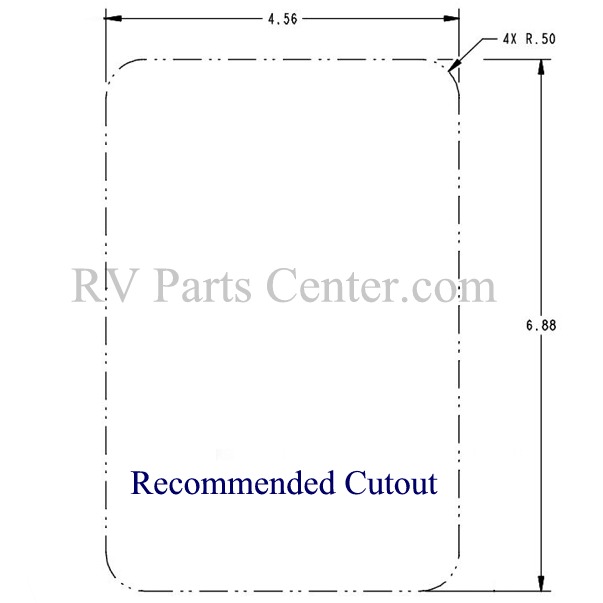

Recommended cutout 6.88″ x 4.56″

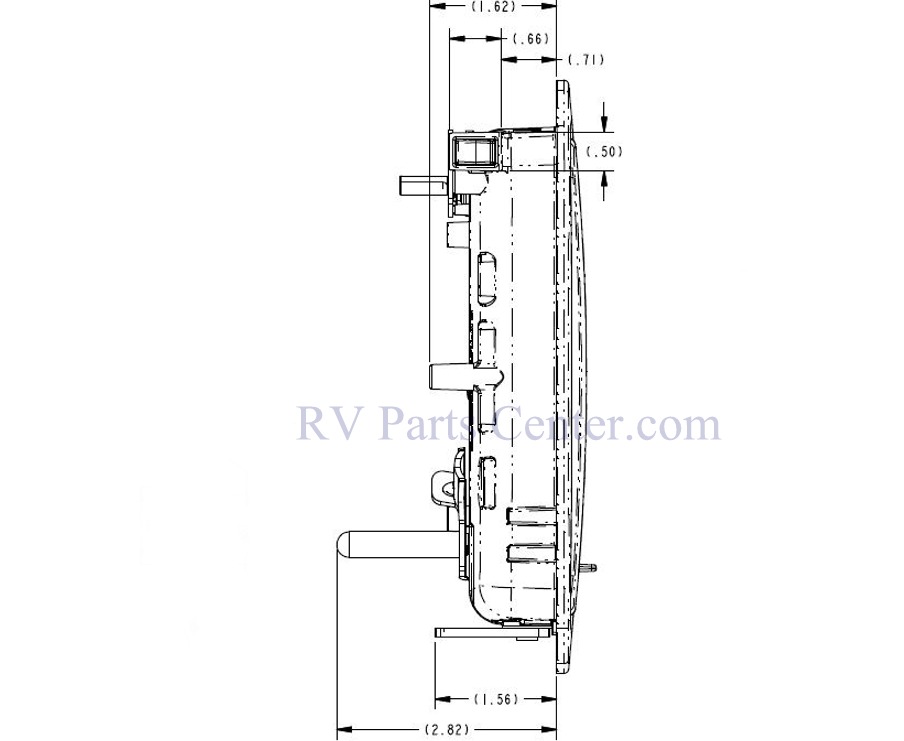

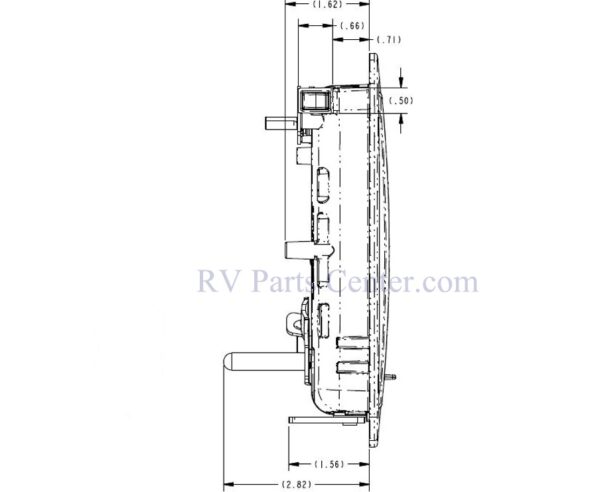

The lock needs to be removed to measure the length of the deadbolt

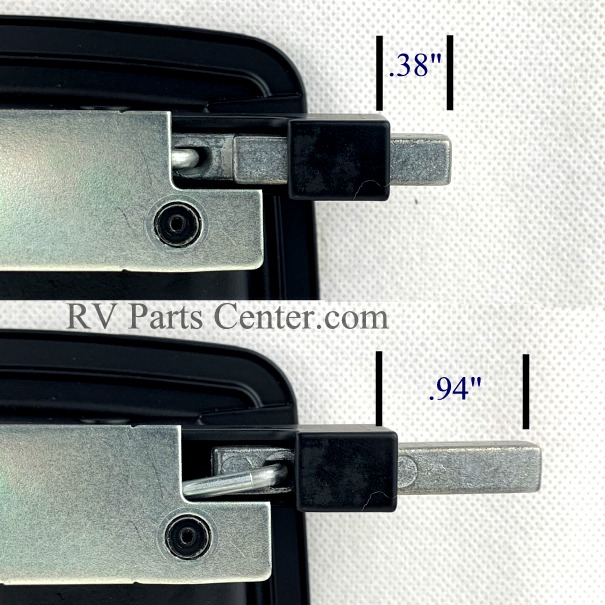

On the lock: the deadbolt protrudes .3800 inch and extends to just under 1 inch (.9400)

Click Here to See Video

If you cant find the part number click here

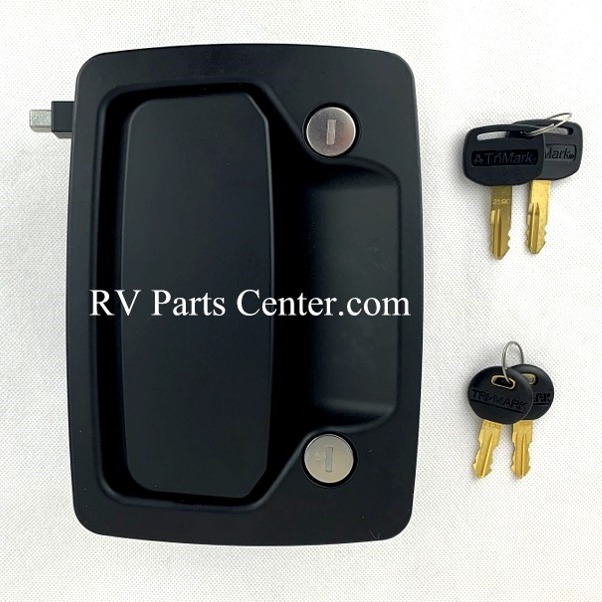

NOTE 1: This is a replacement exterior lock assembly only. Included are: 2 sets of keys and the lock itself.

NOTE 2: There will be no threads in the screw holes of this new lock. The screw holes are meant to be taped as the lock is installed.

NOTE 3: We recomend NO POWER TOOLS WHEN INSTALLING it’s easy to strip a hole or bust a screw.

Please call or email us if you are not sure. There is a 20% restocking fee on this item.
