Tri-Mark Exterior Paddle Lock Only with 1 inch Deadbolt, 36287-01

Description

This 36287-01 (22351-01) exterior lock will only works if the 5 digit code that is stamped on the actuator on the inside of the interior handle is 11921 , 21398 or 25256

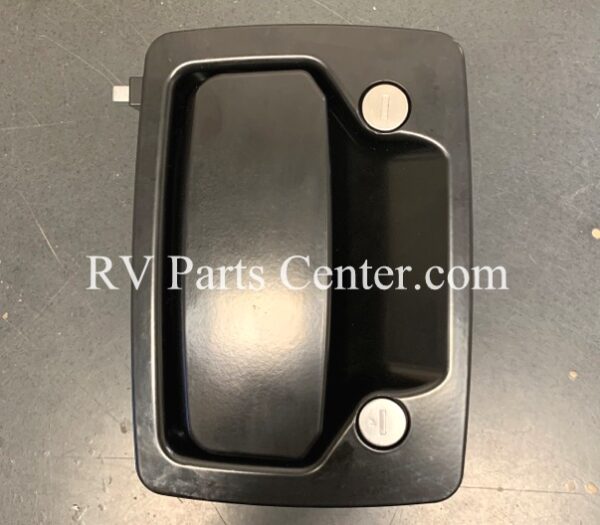

Exterior door handle measures 7.6′ Tall by 5.4′ Wide

The lock needs to be removed to measure the length of the deadbolt

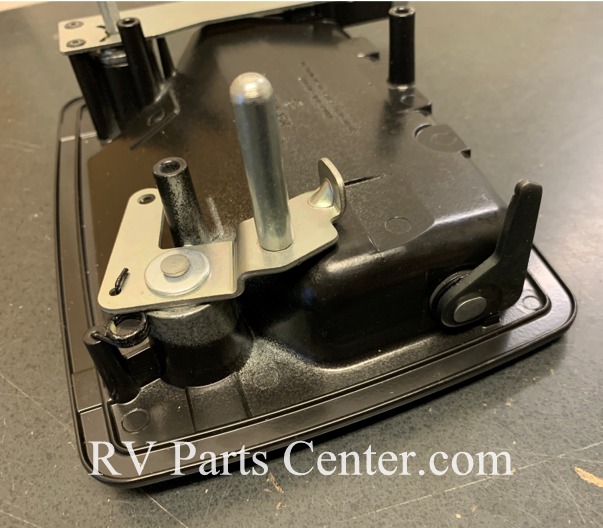

On the lock: the deadbolt protrudes .3800 inch and extends to just under 1 inch (.9400)

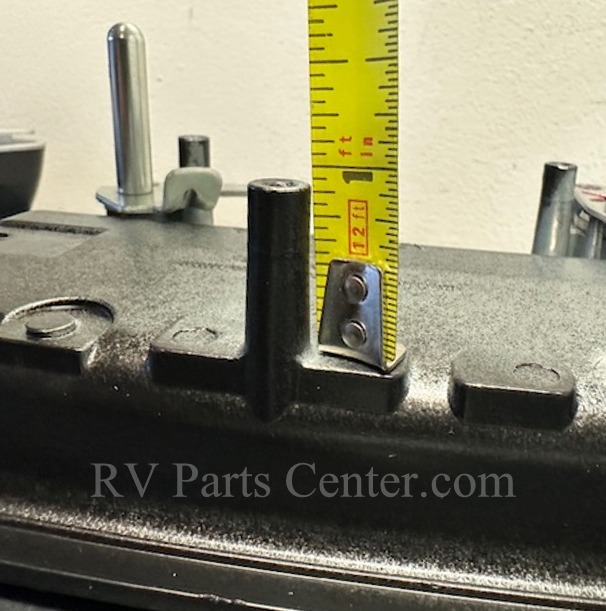

Check the size of the paddle latch (4th picture) if it is less then 1.500 the see part number 36283-05

NOTE 1: This is a replacement exterior lock assembly only. Included are: 2 sets of keys and the lock itself no screws.

NOTE 2: There will be no threads in the screw holes of this new lock. The screw holes are meant to be taped by the end user.

NOTE 3: We recomend NO POWER TOOLS WHEN INSTALLING it’s easy to strip a hole or bust a screw.

Please call or email us if you are not sure. There is a 20% restocking fee on this item.
